Flow Control Valve / Throttle Valve
Download Inquiry
symbol

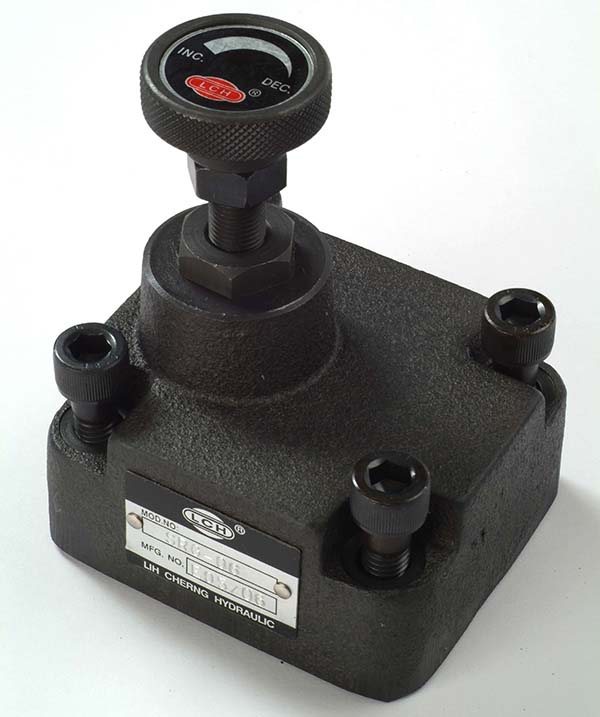

Model  SRG-06

Feature:
  • Flow Control Valve is employed for regulating component speed in a circuit where line pressure is almost steady and always maintains constantly. Small fluctuation of oil flow occurs when pressure changed.
  • Throttle Valve are used to regulate an actuator speed in a circuit where line pressure is almost steady and small fluctuation of oil flow due to pressure change is permitted.
  • The valves of hydraulic surplus with an integral check valve allow free oil flow from the outlet to the inlet port.
How to order:

Description of each model code:

Model Number: SRG-06-10



Model code

Descriptions

1-

SR

Series Number

Throttle Valves

2-

G

Type of Mounting

T: Thread type

G: Gasket type

3-

06

Port Size

04:1/2”

06:3/4”

10:1-1/4”

4-

10

Design Number

Specification Table

Model Number

Max. Pressure kgf/cm2

Max. Flow rate l/min

Weight kg

Bolt size

Thread type

Gasket type

SRT series

SRG series

SRG series

SRT-04

SRG-03

250

30

1.2

1.4

M8x30x4pcs

SRT-06

SRG-06

80

3.0

2.5

M10x45x4pcs

SRT-10

SRG-10

200

6.7

5.0

M12x55x4pcs
