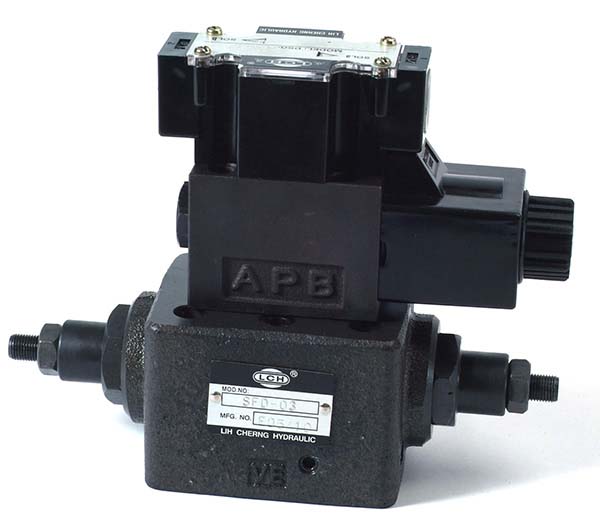

Solenoid Operated Flow Controlled Valve
Home > Flow control valve > Solenoid Operated Flow Controlled Valve
Model SFD-03
Feature:- Solenoid Operated Flow Controlled Valve is a two steps solenoid operated flow controlled valves, which can be used with hydraulic Cylinder, action speed.
- Flow Control Valve of hydraulic lift principle could be worked with either slow speed and rapid speed both types speed control. Suitable to use at close loop of injection molding machine, presses & machine tool etc.
Description of each model code:
Model Number: SFD-03-2B2-A1-10
|
|
Model code |
Descriptions |
|
1 |
SFD |
Series Number Solenoid Operated Flow Controlled Valves |
|
Type of Mounting G: Gasket type |
||
|
2 |
06 |
Port Size 06:3/4” 10:1-1/4” |
|
3 |
2B2 |
Remote Control Style 2B2 2B2L |
|
4 |
A1 |
Voltage type A1:AC110V/60HZ A2:AC220V/60HZ A3:AC380V/50HZ A4: AC110V/50HZ A5:AC220V/50HZ D1:DC12V D2:DC24V |
|
5 |
10 |
Design Number |
Specification Table
|
Model Number |
Max. Pressure kgf/cm2 |
Max. Flow l/min |
Weight kg |
Bolt size |
|||||
|
06 size |
10 size |
06 size |
10 size |
06 size |
10 size |
||||
|
SF-06 |
SF-10 |
250 |
120 |
240 |
5.5 |
9 |
M10x45x4pcs |
M12x45x4pcs |
|
|
SFD-06 |
SFD-10 |
6 |
9 |
||||||
|
SDF-06 |
SDF-10 |
5.5 |
9 |
||||||
|
SD-06 |
SD-10 |
5.1 |
8.1 |
||||||
|
THF-06 |
THF-10 |
5.5 |
8.7 |
||||||
