Modular Relief Valve
Home > Modular valve > Modular Relief Valve MB series > Modular Relief Valve

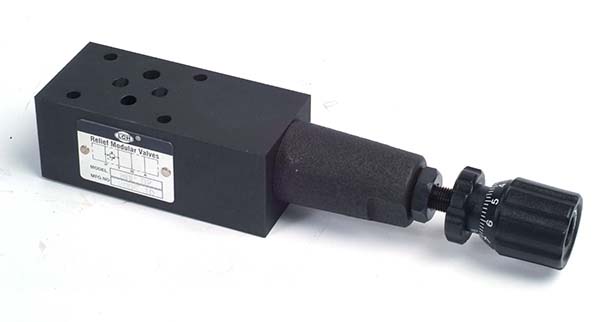

Model MBB-02
Feature:- Sandwich Modular Relief Valve provides maximum pressure control for a hydraulic circuit.
- Wide ranging applicability: Maximum Operating Pressure: 25, 35MPa {255,357kgf/cm2}
- Pressure Adjustment Range: 0.8 to 25, 35MPa {8.2 to 255, 357kgf/cm2}
- hydraulic lift working model of the modular adjustable relief valve is designed to limit the operating pressure in a hydraulic system or in a branch of the system to a maximum set pressure.
- The internal piston moves to smoothly relieve the pressure when the system pressure reaches the desired setting, maintaining stable pressure control and repeatability.
- Pressure relief is available on the P, A, B, and A & B ports. Adjustment is made with a calibrated knob, standard with the valve.
Model Number: MBB-02-1-10
How to order:
|
|
Model code |
Descriptions |
|
1 |
MB |
Series Number Modular Relief Of Valves |
|
2 |
B |
Type of Mounting P:P-Line A:A-Line B:B-Line W:A.B-Line |
|
3 |
02 |
Port Size 02:1/4” 03:3/8” 04:1/2" 06:3/4" |
|
4 |
1 |
Pressure Adj. Range 1:7-70kgf/cm2 2:10-140kgf/cm2 3:15-210kgf/cm2 |
|
5 |
R |
Action Form: R: For B-Line |
|
6 |
10 |
Design Number |
Specification Table
|
Model Numbers |
Max. Pressure Kgf/cm2 |
Pressure Adj. Range Kgf/cm2 |
Max. Flow l/min |
Weight Kg |
|
MB -02 |
250 |
1: 7-70 2:10-140 3:15-250 |
40 |
A B P = 1.5 W=2.5 |
|
MB -03 |
80 |
A B P =3.6 W=4.7 |
||
|
MB -04 |
190 |
A B P = 7 W=8 |
||
|
MB -06 |
300 |
A B P = 12 W=13 |
