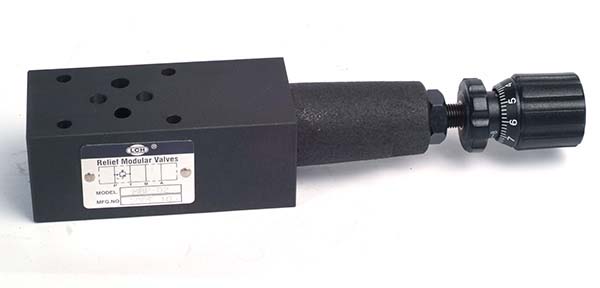

Model  MBP-02

Feature:
  • Sandwich Modular Relief Valve provides maximum pressure control for a hydraulic circuit.
  • Wide ranging applicability: Maximum Operating Pressure: 25, 35MPa {255,357kgf/cm2}
  • Pressure Adjustment Range: 0.8 to 25, 35MPa {8.2 to 255, 357kgf/cm2}
  • hydraulic lift working model of the modular adjustable relief valve is designed to limit the operating pressure in a hydraulic system or in a branch of the system to a maximum set pressure.
  • The internal piston moves to smoothly relieve the pressure when the system pressure reaches the desired setting, maintaining stable pressure control and repeatability.
  • Pressure relief is available on the P, A, B, and A & B ports. Adjustment is made with a calibrated knob, standard with the valve.
How to order:

Model Number: MBP-02-1-10

How to order:



Model code

Descriptions

1

MB

Series Number

Modular Relief Of Valves

2

P

Type of Mounting

P:P-Line

A:A-Line

B:B-Line

W:A.B-Line

3

02

Port Size

02:1/4”

03:3/8”

04:1/2"

06:3/4"

4

1

Pressure Adj. Range

1:7-70kgf/cm2

2:10-140kgf/cm2

3:15-210kgf/cm2

5

R

Action Form:

R: For B-Line
L: For A-Line

6

10

Design Number

Specification Table

Model Numbers

Max. Pressure

Kgf/cm2

Pressure Adj. Range

Kgf/cm2

Max. Flow

l/min

Weight

Kg

MB -02

250

1: 7-70

2:10-140

3:15-250

40

A B P = 1.5

W=2.5

MB -03

80

A B P =3.6

W=4.7

MB -04

190

A B P = 7

W=8

MB -06

300

A B P = 12

W=13
