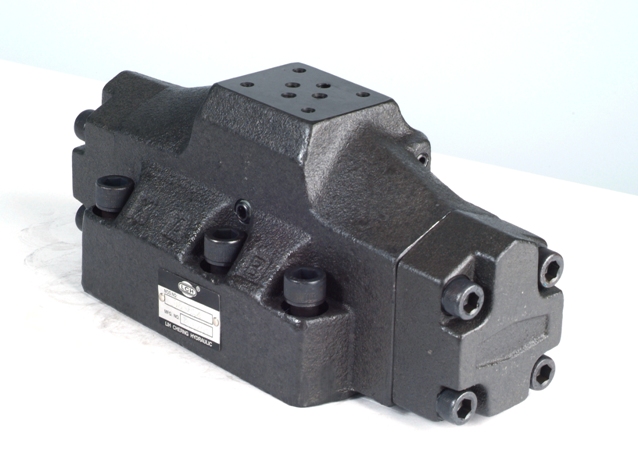

Pilot operated directional valve DHG series for LCH Precision Technology Co., Ltd

Model  DHG-06

Feature:
  • Pilot operated directional valve of hydraulic lift working principle performs a changeover of spool by hydraulic pilot and shift the direction of oil flow.

  • Pilot operated directional valve of service hydraulics control the direction of flow by way of the pilot pressure provided from a remote source.

How to order:

Description of each model code:

Model Number: DHG-06-3C2-1-10



Model code

Descriptions

1-

DHG

Series Number

Pilot Operated Directional Valves

2-

06

Port Size

04:1/2”

06:3/4”

10:1-1/4”

3-

3C2

Spool Type

For details refer to spool type

4-

1

Control Style

1.Internal pilot, internal drain

2.Internal pilot, external drain

3.External pilot, external drain 4.External pilot, internal drain

5-

10

Design Number



Specification Table



Model Number

Max. Flow rate l/min

Max. Pressure kgf/cm2

Pilot Pressure

Kgf/cm2

Allowable back pressure of T port

Kgf/cm2

Weight

kg

Min

Maximum

DHG-04-3C*

300

315

8

210

70-160

6.2

DHG-04-2D*

DHG-04-2B*

130

5.9

DHG-06-3C*

500

11.2

DHG-06-2D*

DHG-06-2B*

140

11.7

DHG-10-3C*

1100

50

DHG-10-2D*

DHG-10-2B*

460
