Pilot operated directional valve
Home > Directional control valve > Pilot operated directional valve DHG series > Pilot operated directional valve

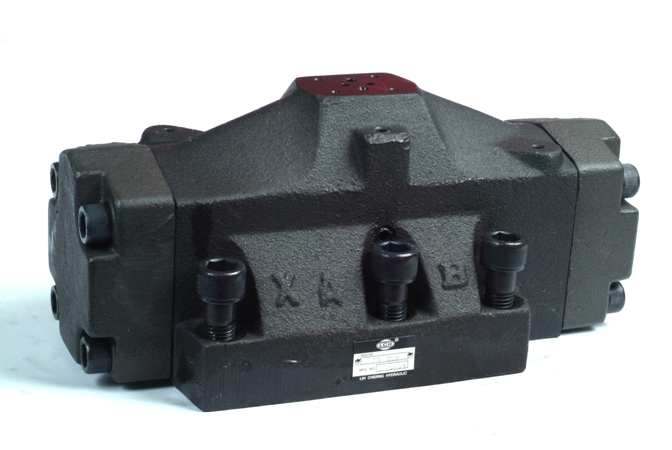

Model DHG-10
Feature:-
Pilot operated directional valve of hydraulic lift working principle performs a changeover of spool by hydraulic pilot and shift the direction of oil flow.
-
Pilot operated directional valve of service hydraulics control the direction of flow by way of the pilot pressure provided from a remote source.
Description of each model code:
Model Number: DHG-10-3C2-1-10
|
|
Model code |
Descriptions |
|
1- |
DHG |
Series Number Pilot Operated Directional Valves |
|
2- |
10 |
Port Size 04:1/2” 06:3/4” 10:1-1/4” |
|
3- |
3C2 |
Spool Type For details refer to spool type |
|
4- |
1 |
Control Style 1.Internal pilot, internal drain 2.Internal pilot, external drain 3.External pilot, external drain 4.External pilot, internal drain |
|
5- |
10 |
Design Number |
|
Model Number |
Max. Flow rate l/min |
Max. Pressure kgf/cm2 |
Pilot Pressure Kgf/cm2 |
Allowable back pressure of T port Kgf/cm2 |
Weight kg |
|
|
Min |
Maximum |
|||||
|
DHG-04-3C* |
300 |
315 |
8 |
210 |
70-160 |
6.2 |
|
DHG-04-2D* |
||||||
|
DHG-04-2B* |
130 |
5.9 |
||||
|
DHG-06-3C* |
500 |
11.2 |
||||
|
DHG-06-2D* |
||||||
|
DHG-06-2B* |
140 |
11.7 |
||||
|
DHG-10-3C* |
1100 |
50 |
||||
|
DHG-10-2D* |
||||||
|
DHG-10-2B* |
460 |
|||||
