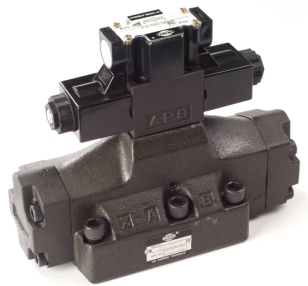

Solenoid controlled pilot operated directional valve

Home > Directional control valve > Solenoid Control Valve DSHG series

Model  DSHG-06

Feature:
  • Change of pilot and drain methods can be easy accomplished by plugging or un-plugging.
  • Molded coil gives maximum insulating properties.
  • It is protected by a special resin and to be impervious to moisture and dirt.
  • Spool is designed to avoid creating jet flow or turbulence under high pressure and large flow operation.
  • Solenoid Control Valve Spool of fluid power hydraulics is designed to avoid creating jet flow or turbulence under high pressure and large flow operation.
How to order:

Description of each model code:

Model Number: DSHG-06-N-3C2-1-A1-10



Model code

Descriptions

1

DSHG

Series Number

Solenoid Controlled Pilot Operated Directional Valves

2

06

Port Size

04:1/2”

06:3/4”

10:1-1/4”

3

N

Electrical Conduit Connection

N: DIN connector with lamp.

DIN 43650. ISO 6952

None: Terminal box type with indicating lamp.

DIN 43650. ISO 6952

4

3C2

Spool Type

For details refer to spool type

5

1

Control Style

1.Internal pilot, internal drain

2.Internal pilot, external drain

3.External pilot, external drain 4.External pilot, internal drain

6

A1

Voltage Type

A1:AC110V/60HZ

A2:AC220V/60HZ

A3:AC380V/50HZ

A4: AC110V/50HZ

A5:AC220V/50HZ

D1:DC12V

D2:DC24V

R1:R110 V(50/60HZ)

R2:R220 V(50/60HZ)D1:DC12V

D2:DC24V

7

10

Design Number

Specification Table

Max. pressure P.A.B. 315 kgf/cm2
Max. back pressure T 70 kgf/cm~ 160 kgf/cm2
Weight (kg) D.sol.8 13.7 52
S.sol.7.6 13.3 51.6
Max. frequence of operating (Cycle/min) 120~280CPM
Ambient temp range 5°C~60°C(+67°F~166°F)
Fluid viscosity 15~400 CST(80~1800SSU)
Filtration 25 Micron
