3D SLA Printer for LCH Precision Technology Co., Ltd

3D SLA Printer

Home > 3D SLA Printer > 3D SLA Printer

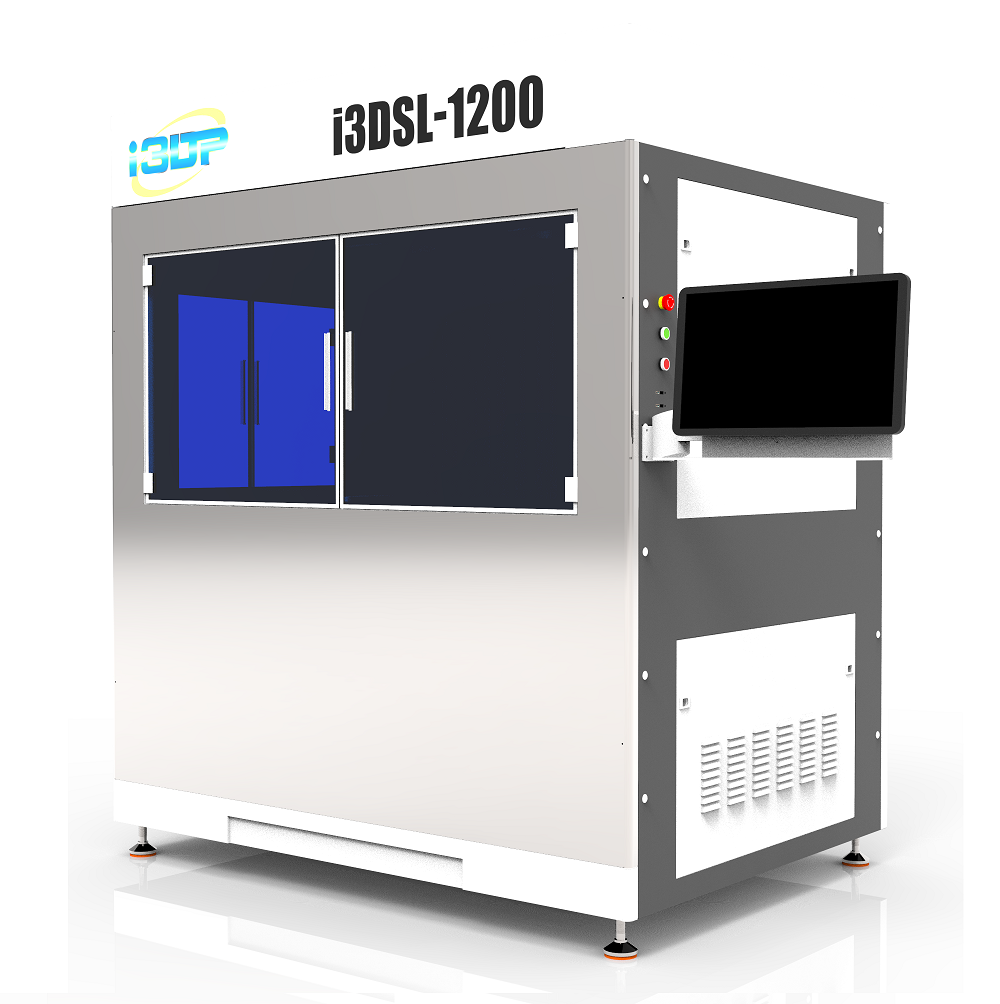

Model  SLA 1200

Feature:

SLA 3D Printer

  • Industrial stereolithography 3D printing technology
  • Practical build envelope capacity of 1200× 600 × 500 mm
  • Industry-leading print quality, speed and precision
  • 3D print software for file preparation and production
  • Compatible with a variety of 3D printing materials
  • Removable Resin Tank to save time when changing different materials

LCH Stereolithography (SLA) 3D Printers build high-quality parts with superior surface quality, accuracy and detail. LCH SLA 3D Printers could print prototypes, rapid tooling and functional models and master patterns.The average layer height is about 0.03-0.25mm layer thickness,the process is repeated slowly building the part up one layer at a time.

LCH Stereolithography (SLA) 3D Printers provides removable resin vat system, which is equipped with automatic storage function to ensure that the resin can be stored for a long time without spoiling. Also, the resin bracket is lifting-type which is more accurate when controlling liquid level and more stable when printing. It is not only meeting the different printing needs of the users, but also greatly reduces the cost in terms of changing material, cleaning, and waiting ready to be used.

How to order:
SLA 3D printing mainly uses photosensitive resin,such as analogues of engineering plastics,ceramic materials and rubber materials such as flexible photosensitive resin, ABS like photosensitive resin and special photosensitive resin. As an international 3D printing enterprise,LCH is dedicated to providing products based on the corresponding material performance as desired by the customer,including demands for cost,appearance,detail,mechanical property,chemical stability and special application.

Specification Table

 Technical Parameter:

Model Type

I3DSL-1000

I3DSL-1200

I3DSL-1600

Laser Type

Double pumped laser

Technology Type

Stereolithography (SLA)

Build Envelope Capacity

100*100*60cm

120*60*50cm

160*80*60cm

Accuracy

L < 100 mm: ±0.1 mm
L ≥ 100 mm: ±0.1% x L

Maximum Build Weight

100kgs

120kgs

120kgs

Layer Thickness

0.05-0.2mm

0.05-0.2mm

0.05-0.2mm

Scanning Speed

6.0m/s-15m/s

6.0m/s-15m/s

6.0m/s-15m/s

Print Weight

50-180g/h

50-180g/h

50-180g/h

Resin Tank

Removable Resin Tank

Input Data File Format

STL

Operating system

Windows

Filaments

Photosensitive Resin

Machine size

1600*1700*2500mm

1400*1300*1950mm

2600*1670*2300mm

Machine Weight

1800kg

1800kg

1900kgs




Industrial 3D SLA printers like  LCH Stereolithography (SLA) 3D Printers are more common using in areas with high precision or specialized materials. Think the medical or dental industries one of the biggest success stories of 3D printing for hearing aids with 97% of all hearing aids globally now produced by 3D SLA printing. Not only could be applied on medical or dental industries, but also aerospace, automotvie, consumer goods, consumer electronics, manufacturing and processing, medical industry, and education areas.


LCH Stereolithography (SLA) 3D Printers offers OEM and ODM 3D printing service SLA as well. Provide us your stl. file then we could print the applications for you.
