Hydraulic Direct type remote control relief valve
Home > Pressure control valve > Direct Type Relief Valve DG‧DT series > Hydraulic Direct type remote control relief valve

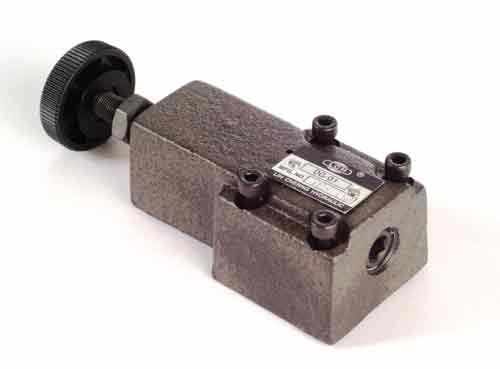

Model DG-01
Feature:- Hydraulic Direct type remote control relief valve (DT-02) and (DG-02) series can be used to control small flows hydraulic system pressure.
- Direct type remote control relief valve is worked for preventing damage in a hydraulic circuit if over pressure. It is used for adjust the maximum circuit pressure of small capacity.
- Direct type remote control relief valve is used for hydraulic pressure control valve, Relief Valve, Pressure Reducing Valve by remote control.
- Direct type remote control relief valve is used to protect hydraulic system from excessive pressure and can also be used to maintain a constant pressure in the hydraulic system.
- A hydraulic valve properly directs the flow of a liquid medium, usually oil, through your hydraulic system
- The direction of the oil flow is determined by the position of a spool.
- A hydraulic system can only function - as per requirements - by using valves.
- Hydraulic valves are available in a variety of sizes and according to multiple International Standards.
- Hydraulic valves are available with many different mounting styles: e.g. mounting in pipe lines, with threaded connection as cartridge valves, subplate mounting or flanged mounting.
- Hydraulic valves are subdivided into three main categories: directional control valves, pressure control valves and flow control valves. All valves operate a different function in the hydraulic system.
Description of each model code:
Model Number: DG-01-1-10
|
|
Model code |
Descriptions |
|
1- |
D |
Series Number Direct Type Relief Valves |
|
2- |
G |
Type of Mounting T: Thread type G: Gasket type |
|
3- |
01 |
Port Size 01:1/8” 02:1/4” |
|
4- |
1 |
Pressure Adj. Range 1:7-70kgf/cm2 2:10-140kgf/cm2 3:15-210kgf/cm2 |
|
5- |
10 |
Design Number |
Specification Table
|
Model Numbers |
Max. Pressure kgf/cm2 |
Pressure Adj. Range kgf/cm2 |
Max. Flow l/min |
Weight kg |
Bolt Size |
|
|
DT-01 |
DG-1 |
250
|
1 : 7-70 2:10-140 3:15-250 |
2 |
1.2 |
M5x40x4pcs |
|
DT-02 |
DG-02 |
16 |
1.5 |
M5x45x4pcs |
||
