Hydraulic General type Pilot Operated Relief Valve

Home > Pressure control valve > Hydraulic General type Pilot Operated Relief Valve

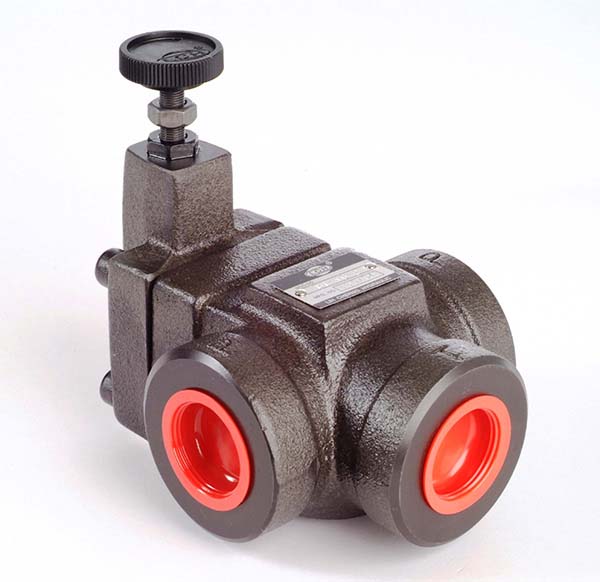

Pilot Operated Relief Valve
Download Inquiry
symbol

Model  BT-10

Feature:
  • Hydraulic valves are subdivided into three main categories: directional control valves, pressure control valves and flow control valves. All valves operate a different function in the hydraulic system.
  • Pressure control valves switch (or control) at a certain pressure; the switching pressure may be adjusted on the valve.
  • Hydraulic General type Pilot Operated Relief Valves are always used in a simple hydraulic system, and can be used to maintain constant pressure in a hydraulic system
  • Hydraulic General type Pilot Operated Relief Valves are simple structures and economical.
  • Remote control and unloading are permitted by vent circuit.
  • General type Pilot Operated Relief Valves are designed for protecting the hydraulic system from excessive pressure.
  • Casting iron bodies provide strength and durability for longer life.
  • Internal hardened steel components also provide longer life.
How to order:

Description of each model code:

Model Number: BT-10-1-10



Model code

Descriptions

1

B

Series Number

Pilot operated relief valves

2

T

Type of Mounting

T: Thread type

G: Gasket type

3

10

Port Size

03:3/8”

06:3/4”

4

1

Pressure Adj. Range

1:7-70kgf/cm2

2:10-140kgf/cm2

3:15-250kgf/cm2

5

10

Design Number

Specification Table

Model Numbers

Max. Pressure

Pressure Adj. Range

Max. Flow

Weight

kg

Bolt Size

Thread type

Gasket type

kgf/cm2

kgf/cm2

l/min

BT-

BG-

BG-

BT-04

BG-03

250

1: 7-70,

2:10-140,

3:15-250,

60

2.6

4.7

M12x70x2pcs

M12x90x2pcs

BT-06

BG-06

200

4.0

6.6

M16x60x2pcs

M16x80x2pcs

BT-10

-

400

6.7

-

-
