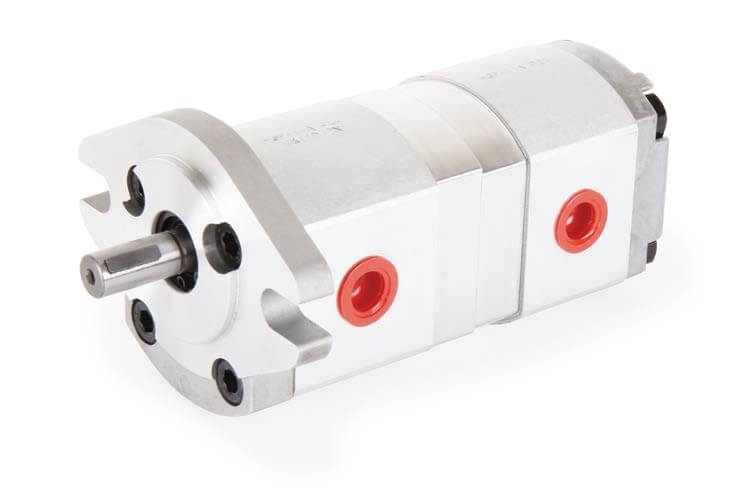

Hydraulic Tandem DoubleGear Pump
Home > Hydraulic gear pump > Tandem Gear Pump HGP Series > Hydraulic Tandem DoubleGear Pump
Model HGP-11A Series
Feature:- Pmax:210kgf/cm2~250kgf/cm2
- Qmax:1cc+1cc/rev~8+8cc/rev
- Shaft type: X: Straight Shaft, Y: Spline Shaft, Z: Taper Shaft
- Mouting type: Flange type; foot type
- Flange Mounting Type: SAE 2-bolt, DIN 4-bolt (type A), DIN 4-bolt (type B) European 4-bolt
- inlet and outlet option: flange type, G, BSPP PF type, PT type, NPT type and UNF type.
- The range of Hydraulic Tandem Double Gear Pump and motors is available in 4 basic frame sizes for flows up to 108lpm and pressure up to 250bar (3500psi) single and multiple units are offered having a variety of shaft, flange and connection options, which fit SAE, European and German standards.
- viton o-ring and bck up ring ensure high temperature proof.
- internal bearing design of hydraulic power pump ensure high pressure capacity,
- clockwise, counter-clockwise and reverse rotations are avialable 6.for comprehensive applications, the gear pump can be optionally mounted with catridge relief or lifting valves.
- A engine hydraulic pump uses the meshing of gears to pump fluid by displacement. They are one of the most common types of pumps for hydraulic fluid power applications.Gear pumps are also widely used in chemical installations to pump high viscosity fluids. There are two main variations; external gear pumps which use two external spur gears, and internal gear pumps which use an external and an internal spur gears (internal spur gear teeth face inwards). Gear pumps are positive displacement (or fixed displacement), meaning they pump a constant amount of fluid for each revolution. Some gear pumps are designed to function as either a motor or a pump.
Description of each model code:
Model Number: HGP-11A-F-33-R-X-2B-P2
|
|
Model code |
Descriptions |
|
1 |
HGP |
Series Number Tandem Gear Pumps |
|
2 |
11 |
Group Group 11A |
|
3 |
F |
Mounting F: Flange Type L:Foot Type |
|
4 |
33 |
Displacement 11: 1+1cc/rev 22: 2+2cc/rev 2626: 2.6+2.6cc/rev 33: 3+3cc/rev 44: 4+4cc/rev 55: 5+5cc/rev 66:6+6cc/rev 88:8+8cc/rev |
|
5 |
R |
Rotation Directional (Viewed from shaft side) R:Clockwise |
|
6 |
X |
Shaft Type X: Straight Shaft Y: Spline Shaft Z: Taper Shaft |
|
7 |
2B |
Flange Mounting Type 2B:SAE 2-bolt 4BDA:DIN 4-bolt ( Type A) 4BDB:DIN 4-bolt ( Type B) 4BE: European 4-bolt |
|
8 |
F P G N U |
Flange type (F1-F2) PT thread (P1-P2) G, BSP, PF thread (G1-G2) NPT (N1-N2) UNF (U1-U2) |
|
Model |
Displacement |
Work Pressure |
Max. Pressure |
Rate Speed |
Max Speed |
Mix Speed |
Out-Port Size |
In-Port Size |
Weight |
|
HGP-11A-※11 |
1+1 |
210 |
250 |
1800 |
4500 |
4500 |
PT3/8 |
PT3/8 |
2.81 |
|
HGP-11A-※22 |
2+2 |
210 |
250 |
1800 |
4500 |
600 |
PT3/8 |
PT3/8 |
2.91 |
|
HGP-11A-※2626 |
2.6+2.6 |
210 |
250 |
1800 |
4500 |
600 |
PT3/8 |
PT3/8 |
3.11 |
|
HGP-11A-※33 |
3+3 |
210 |
250 |
1800 |
4500 |
600 |
PT3/8 |
PT3/8 |
3.13 |
|
HGP-11A-※44 |
4+4 |
210 |
250 |
1800 |
4000 |
600 |
PT3/8 |
PT3/8 |
3.17 |
|
HGP-11A-※55 |
5+5 |
210 |
250 |
1800 |
3200 |
600 |
PT3/8 |
PT3/8 |
3.21 |
|
HGP-11A-※66 |
6+6 |
210 |
250 |
1800 |
3200 |
600 |
PT3/8 |
PT3/8 |
3.41 |
|
HGP-11A-※88 |
8+8 |
170 |
210 |
1800 |
3200 |
600 |
PT3/8 |
PT3/8 |
3.61 |
