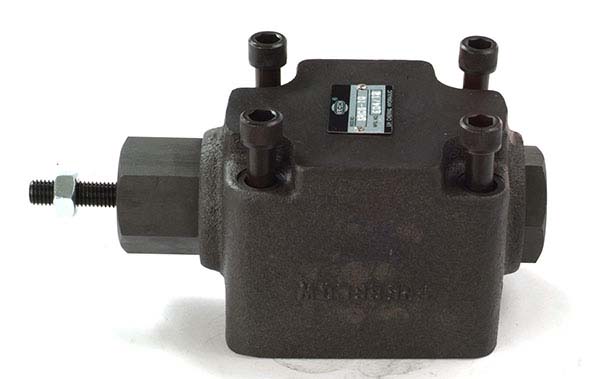

Throttle & Check Valve
Download Inquiry
symbol

Model  SRCG-10

Feature:
  • Throttle and Check Valve of hydraulic power unit is employed for requlating component speed, circuiting pressure etc., which always maintains constant or little variety in flow rate due to pressure changed.
  • The throttle and check hydraulic valves can be permissible the hyd. oli flow from oil outlet into inlet freely.
How to order:

Description of each model code:

Model Number: SRCG-10-10



Model code

Descriptions

1-

SRC

Series Number

Throttle & Check Valves

2-

G

Type of Mounting

T: Thread type

G: Gasket type

3-

10

Port Size

04:1/2”

06:3/4”

10:1-1/4”

4-

10

Design Number

Specification Table

Model Number

Max. Pressure kgf/cm2

Max. Flow rate l/min

Weight kg

Bolt size

Thread type

Gasket type

SRT series

SRG series

SRG series

SRCT-04

SRCG-03

250

30

1.5

1.8

M8x50x4pcs

SRCT-06

SRCG-06

80

3.7

4.3

M10x75x4pcs

SRCT-10

SRCG-10

200

7.3

8.1

M12x100x4pcs
