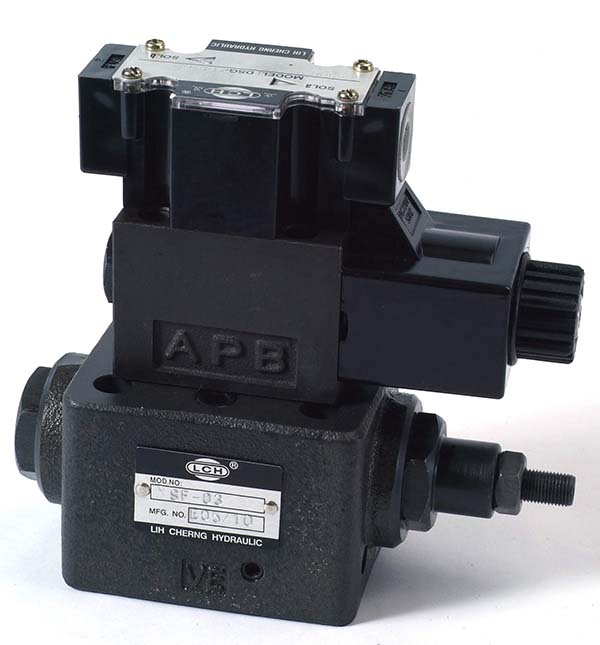

Solenoid Operated Flow Controlled Valve for LCH Precision Technology Co., Ltd

Download Inquiry symbol

Model  SF-03

Feature:

• Solenoid Operated Flow Controlled Valve is a two steps solenoid operated flow controlled valves which are composed by flow controlled valve and solenoid operated directional valves.
• In conventional, the hydraulic oil can be flowed freely and by solenoid valve action, so that, the flow rate can be controlled.
• Since Flow Control Valve of hydraulic engine are employed at where need two speed controlled condition, it suites close loop of injection molding machine, pressures & machine tool etc very well.

How to order:

Description of each model code:

Model Number: SF-03-2B2-A1-10

	Model code	Descriptions
1-	SF	Series Number Solenoid Operated Flow Controlled Valves
		Type of Mounting G: Gasket type
2	06	Port Size 06:3/4” 10:1-1/4”
3-	2B2	Remote Control Style 2B2 2B2L
4-	A1	Pressure Adj. Range A1:AC110V/60HZ A2:AC220V/60HZ A3:AC380V/50HZ A4: AC110V/50HZ A5:AC220V/50HZ D1:DC12V D2:DC24V
5-	10	Design Number

---
