Low noise type pilot operated relief valve for LCH Precision Technology Co., Ltd

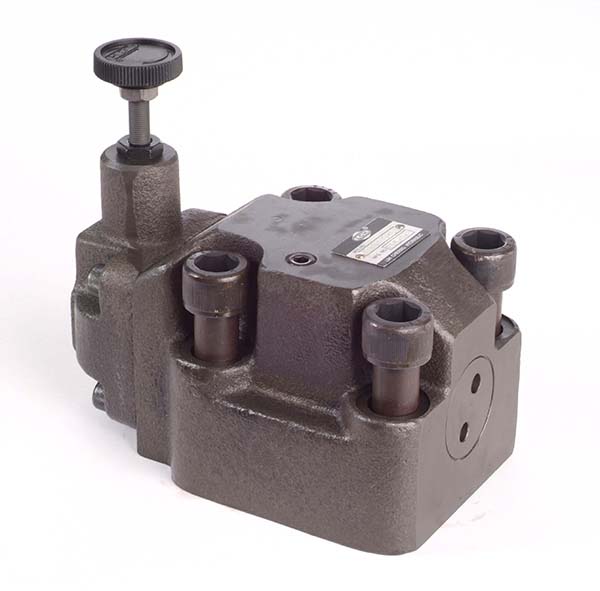

Low noise type pilot operated relief valve

Home > Pressure control valve > Low noise type pilot operated relief valve
Pressure Control Valve / Pilot Operated Relief Valve
Download Inquiry
symbol

Model  BHG-10

Feature:
  • Low noise type pilot operated relief valve is a special design for hydraulic circuiting of plastic injection molding machine.
  • Low noise type pilot operated relief valve is able to bring the features of low noise and quick response.
  • Low noise type pilot operated relief valve in hydraulic lift can meet higher standard of pressure & noise level as customization.
  • Low noise type pilot operated relief valve, hydraulic lift, hydraulic press is able to protect pumps and control valves against excessive pressures.
  • Low noise type pilot operated relief valve in hydraulic press, hydraulic lift, hydraulic press are used to control the pressure in the hydraulic system to a constant level.
  • Remote Control Relief Valves are used for hydraulic pressure control valve (Relief Valve, Pressure Reducing Valve) by remote control.
  • Relief Valve is used to protect hydraulic system from excessive pressure and can also be used to maintain a constant pressure in the hydraulic system.
  • Hydraulic valves are available with many different mounting styles: e.g. mounting in pipe lines, with threaded connection as cartridge valves, subplate mounting or flanged mounting.
  • Hydraulic valves are subdivided into three main categories: directional control valves, pressure control valves and flow control valves. All valves operate a different function in the hydraulic system.
How to order:

Description of each model code:

Model Number: BHG-10-1-10



Model code

Descriptions

1-

BH

Series Number

Pilot operated relief valves

2-

G

Type of Mounting

T: Thread type

G: Gasket type

3-

10

Port Size

06:3/4”

10:1-1/4”

4-

1

Pressure Adj. Range

1:7-70kgf/cm2

2:10-140kgf/cm2

3:15-250kgf/cm2

5-

10

Design Number

Specification Table

Model Numbers

Max. Pressure

kgf/cm2

Pressure Adj. Range

kgf/cm2

Max. Flow

l/min

Weight

kg

Bolt Size

BHG-06

350

1:7-70,

2:10-140,

3:15-250,

250

7.8

M16x80x4pcs

BHG-10

500

12.7

M20x90x4pcs
