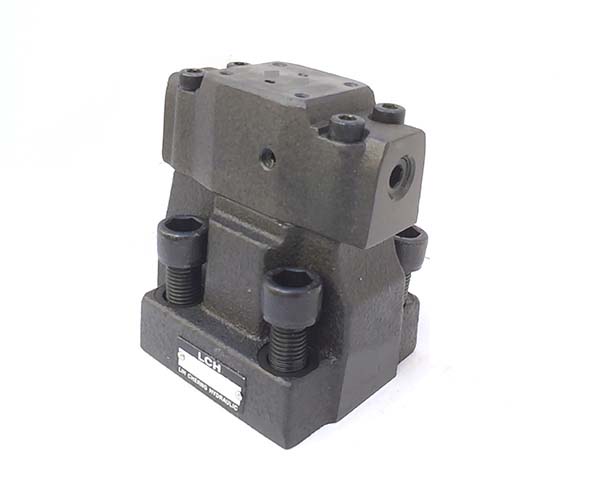

Pilot Operated Relief Valve
Home > Pressure control valve > Pilot Operated Relief Valve
Model ESBG-03
Feature:- Pilot Operated Relief Valve of hydraulic equipment is a special design for hydraulic circuiting of plastic injection molding machine.
- Pilot Operated Relief Valve brings the features of low noise and quick response.
- Pilot Operated Relief Valve in a hydraulic machines is able to meet the requirements of higher standard of pressure and noise level.
- Pilot Operated Relief Valve is able to protect pumps and control valves against excessive pressures, they are used to control the pressure in the hydraulic system to a constant level.
- Pilot Operated Relief Valve is also able to install with Proportional Electro Hydraulic Relief and flow valves (EDG valve)
Description of each model code:
Model Number: ESBG-03-1-10
|
|
Model code |
Descriptions |
|
1 |
ESB |
Series Number Pilot operated relief valves |
|
2 |
G |
Type of Mounting G: Gasket type |
|
3 |
03 |
Port Size 03:3/8” 06:3/4” |
|
4 |
1 |
Pressure Adj. Range 1:7-70kgf/cm2 2:10-140kgf/cm2 3:15-250kgf/cm2 |
|
5 |
10 |
Design Number |
Specification Table
|
Model Numbers |
Max. Pressure kgf/cm2 |
Pressure Adj. Range kgf/cm2 |
Max. Flow l/min |
Weight kg |
Bolt Size |
|
ESBG-03 |
250 |
1:7-70, 2:10-140, 3:15-250, |
100 |
4.7 |
M12x40x4pcs |
|
ESBG-06 |
250 |
1:7-70, 2:10-140, 3:15-250, |
200 |
6.0 |
M16x50x4pcs |
