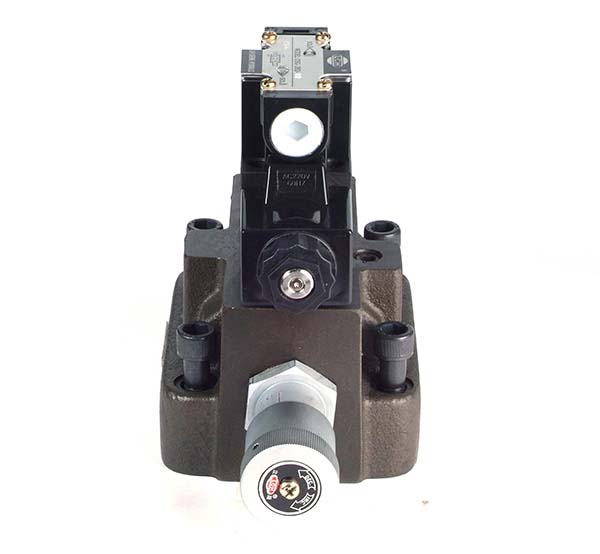

Solenoid Operated Flow Controlled Valve
Home > Flow control valve > Solenoid Operated Flow Controlled Valve
Model SDF-10
Feature:- Solenoid Operated hydraulic Flow Controlled Valve works with single step flow controlled valves which combined flow controlled valve & solenoid operated directional valves. In conventional to shut off hydraulic Oil flow, solenoid valves action and flow rate control etc., which can be used at electrical signal control start and stop and combined speed control, those are used at hydraulic Pump motor loop of injection molding machine, elevator etc.,
- Professional manufacturer of Flow Controlled Valve and Solenoid Operated Flow Controlled Valve in Taiwan.
Description of each model code:
Model Number: SDF-10-2B2-A1-10
|
|
Model code |
Descriptions |
|
1 |
SDF |
Series Number Solenoid Operated Flow Controlled Valves |
|
Type of Mounting G: Gasket type |
||
|
2 |
10 |
Port Size 06:3/4” 10:1-1/4” |
|
3 |
2B2 |
Remote Control Style 2B2 2B2L |
|
4 |
A1 |
Voltage type A1:AC110V/60HZ A2:AC220V/60HZ A3:AC380V/50HZ A4: AC110V/50HZ A5:AC220V/50HZ D1:DC12V D2:DC24V |
|
5 |
10 |
Design Number |
Specification Table
|
Model Number |
Max. Pressure kgf/cm2 |
Max. Flow l/min |
Weight kg |
Bolt size |
|||||
|
06 size |
10 size |
06 size |
10 size |
06 size |
10 size |
||||
|
SF-06 |
SF-10 |
250 |
120 |
240 |
5.5 |
9 |
M10x45x4pcs |
M12x45x4pcs |
|
|
SFD-06 |
SFD-10 |
6 |
9 |
||||||
|
SDF-06 |
SDF-10 |
5.5 |
9 |
||||||
|
SD-06 |
SD-10 |
5.1 |
8.1 |
||||||
|
THF-06 |
THF-10 |
5.5 |
8.7 |
||||||
